Track Plan history of the Jersey Subdivision cont.
Click on any plan to enlarge.

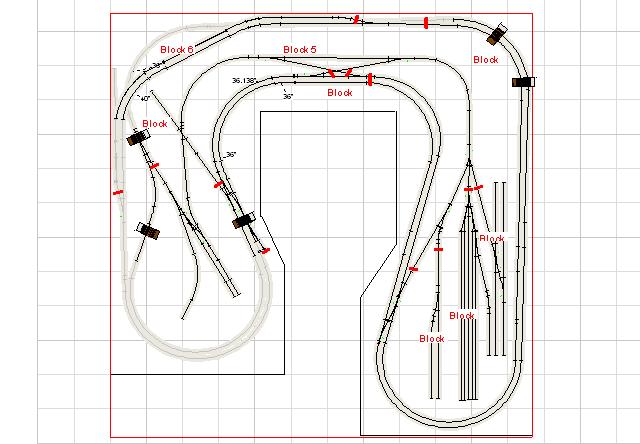

This is the current track plan and a version showing the electrical blocks. It added an engine service area in the yard, used more 3 way and slip switches to maximize space utilization.

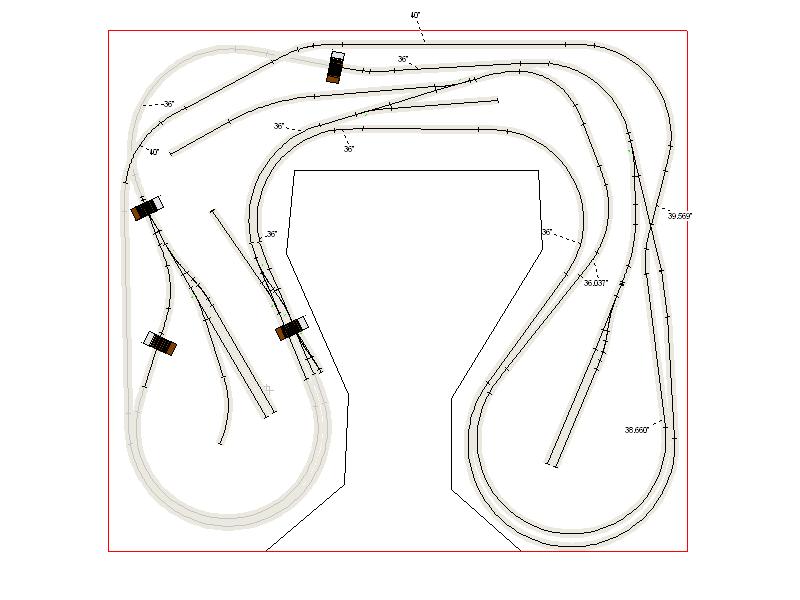

This revision attempted to improve operational usage of the yard area and get incoming freight off of the mainline faster.
This was the next revision which added more yard tracks to the right half of the layout.

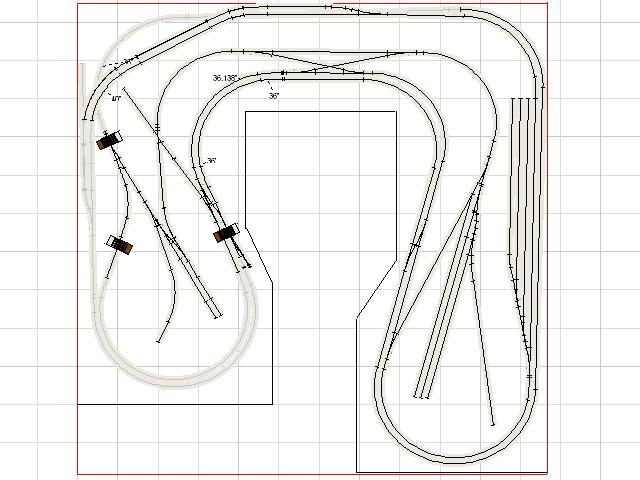

This was the original upper level plan.
